Adobe Experience Platform Integration for Ecommerce

This page explains how to implement the Web SDK for Rokt Ecommerce using Adobe Experience Platform to deliver more relevant customer experiences at checkout. The SDK allows you to trigger and track these experiences (like displaying offers on confirmation pages) by firing on configured pages and passing user and transaction data back to Rokt for personalization and measurement.

You'll learn how to create data elements in Adobe based on your data layer and how to create rules to initialize the Rokt SDK and show Rokt placements.

Add the Rokt Extension

1. Sign in to Adobe Experience Platform.

2. Navigate to the Extensions tab and search mParticle by Rokt in the Catalog.

3. Click on the mParticle by Rokt Extension and click Install.

4. Navigate to the installed mParticle by Rokt extension in the Extensions tab and click Configure.

5. Enter your configuration settings in the Configuration tab:

   • Under API Key, enter the API key provided to you by your Rokt account manager.
   • Enable Use Cookie Storage if your website uses multiple subdomains (for example, mysite.com and checkout.mysite.com).
   • If you are testing your integration, enable the Development Mode flag. Once your integration is ready for production data, this flag should be disabled.
   • The mParticle by Rokt Extension allows developers to specify a Log Level which will send warnings, errors, and other information directly from your integration. It is recommended to set the Log Level to Verbose while testing your integration.
   • If you set up a custom domain for a first-party domain integration, enter your new domain name under CNAME domain. Please enter the domain in the following format rkt.yourcompany.com.
   • Enable noTargeting and noFunctional to disable targeting/functional cookies, which are normally used for personalization and enhanced checkout experiences.

For a more detailed discussion, see Cookie Consent Flags.

6. Configure Identity in the User Identities tab:

   • If you are going to integrate raw email, enter the data element you have created in the Email field.
   • If you are going to integrate hashed email (SHA-256), enter the data element you have created in the Email SHA256 field.

7. Click Save.

Create your Rules

Initialize the Rokt SDK

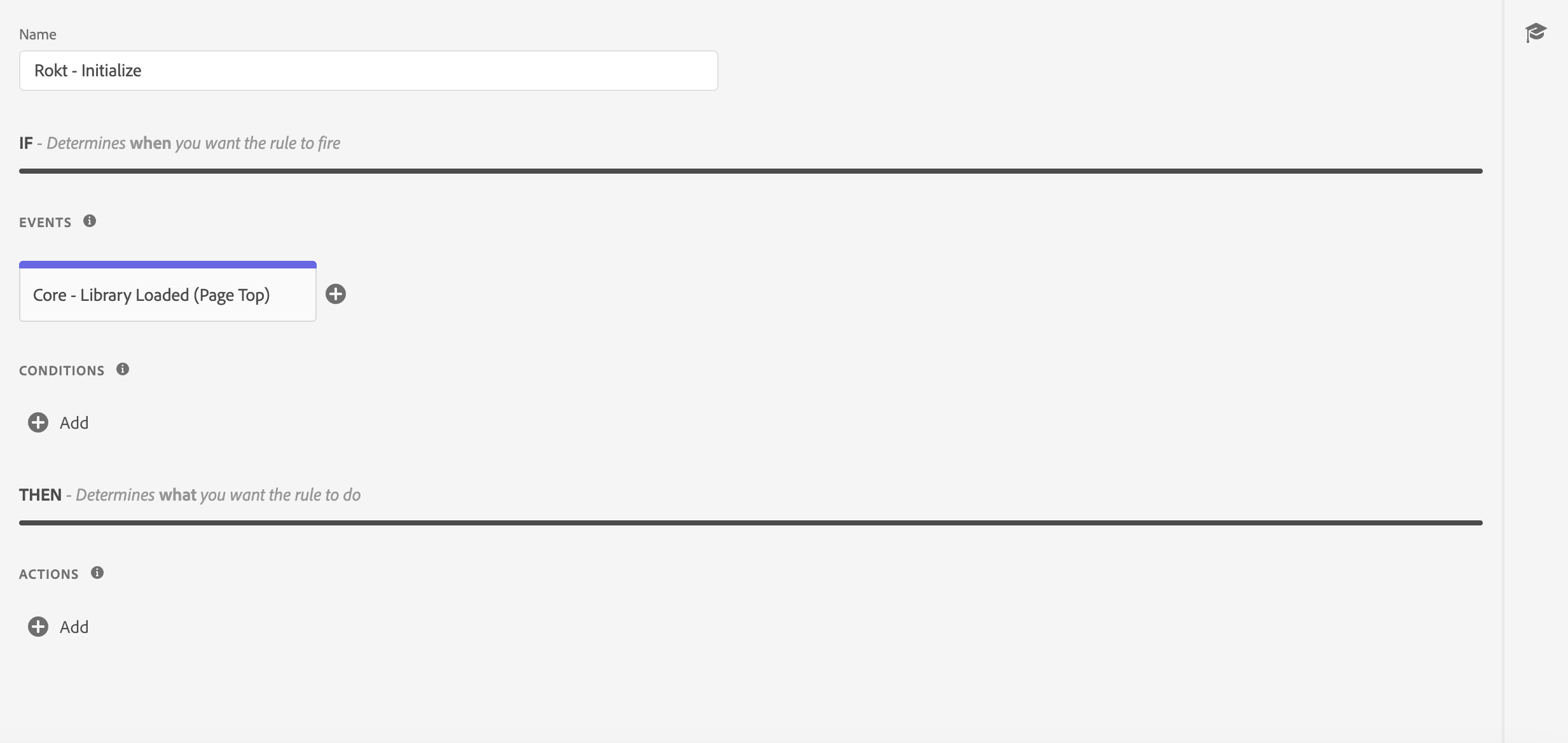

1. Navigate to the Rules tab and choose Add Rule.
2. Give your Rule a descriptive name, such as Rokt - Initialization, and create your Event to make the rule fire.

note

Every site is different, but Rokt recommends using the Event Type Library Loaded (Page Top) to ensure the Initialization Action loads as soon as possible.

3. Create your Action and choose mParticle by Rokt as the Extension and Initialize Rokt as the Action Type. 4. Click Keep Changes in the Action Configuration and Save to Library.

note

Every site is different, but Rokt recommends firing the Initialization Action on every page. This ensures the lowest offer delivery latency and the highest user identification accuracy.

Identify the User

You should create a Rule that identifies the current user to Rokt. Make sure to include this Rule in your site so it is fired as soon as the email address is known.

1. Navigate to the Rules tab and choose Add Rule.
2. Give your Rule a descriptive name, such as Rokt - Identify, and create your Event to make the rule fire.
3. Create your Action and choose mParticle by Rokt as the Extension and Identity Events as the Action Type.
4. Select Identify as the Identity Method.
5. Click Keep Changes in the Action Configuration and Save to Library.

Once this action has run, it will identify the user using the Email/Email SHA256 value from the Extension settings.

Log Page Views

You should log page views as soon as each page in the user's transaction journey is loaded. To enable Page Views:

1. Navigate to the Rules tab and choose Add Rule.
2. Give your Rule a descriptive name, such as Rokt - Page View, and create your Event to make the rule fire.

note

Every site is different, but Rokt recommends logging page views as soon as the page loads and the Initialize Rokt action has fired. Please see Combining Rules for more info.

3. Create your Action and choose mParticle by Rokt as the Extension and Log Page View as the Action Type.
4. Add the Log Page View configurations for Page Settings, Custom Attributes, and Custom Flags.

The Log Page View action accepts the following fields:

• Event Name: a string for the name of the page being loaded
• Custom Attributes: an object of key/value pairs containing information about the page
• Custom Flags: an object of key/value pairs containing information about the page, usually specific to a technology partner; e.g. SnapchatConversions.ClickId

The page name field should be set to a generic page name. For example, an Ecommerce website could have hundreds of product detail pages. To log these correctly, you should use a generic name (e.g. "Product Detail Page") and then log the url and other attributes of the page as attributes.

In the example below, the Log Page View action:

• Under Event Name, set the value page view.
• Set a screen_name Data Element derived from the last segment of the URL path (with a fallback to "home").
• Set a url Data Element capturing the full URL of the current page.
• Set a referring-page Data Element, captured from document.referrer.

For guidance on how to build these Data Elements, please see the Recommended Screen View Event Attributes below.

5. Click Keep Changes in the Action Configuration and Save to Library.

Show Rokt Placements

In addition to enabling Actions to initialize the Rokt SDK, Rokt Ecommerce integrations also require an Action to show Rokt placements.

1. Navigate to the Rules tab and choose Add Rule.
2. Give your Rule a descriptive name, such as Rokt - Show Placement, and create your Event to make the rule fire.

The exact trigger configuration will vary for every site. Below are examples of trigger configurations depending on whether your site is a multi-page application (MPA) or a single-page application (SPA):

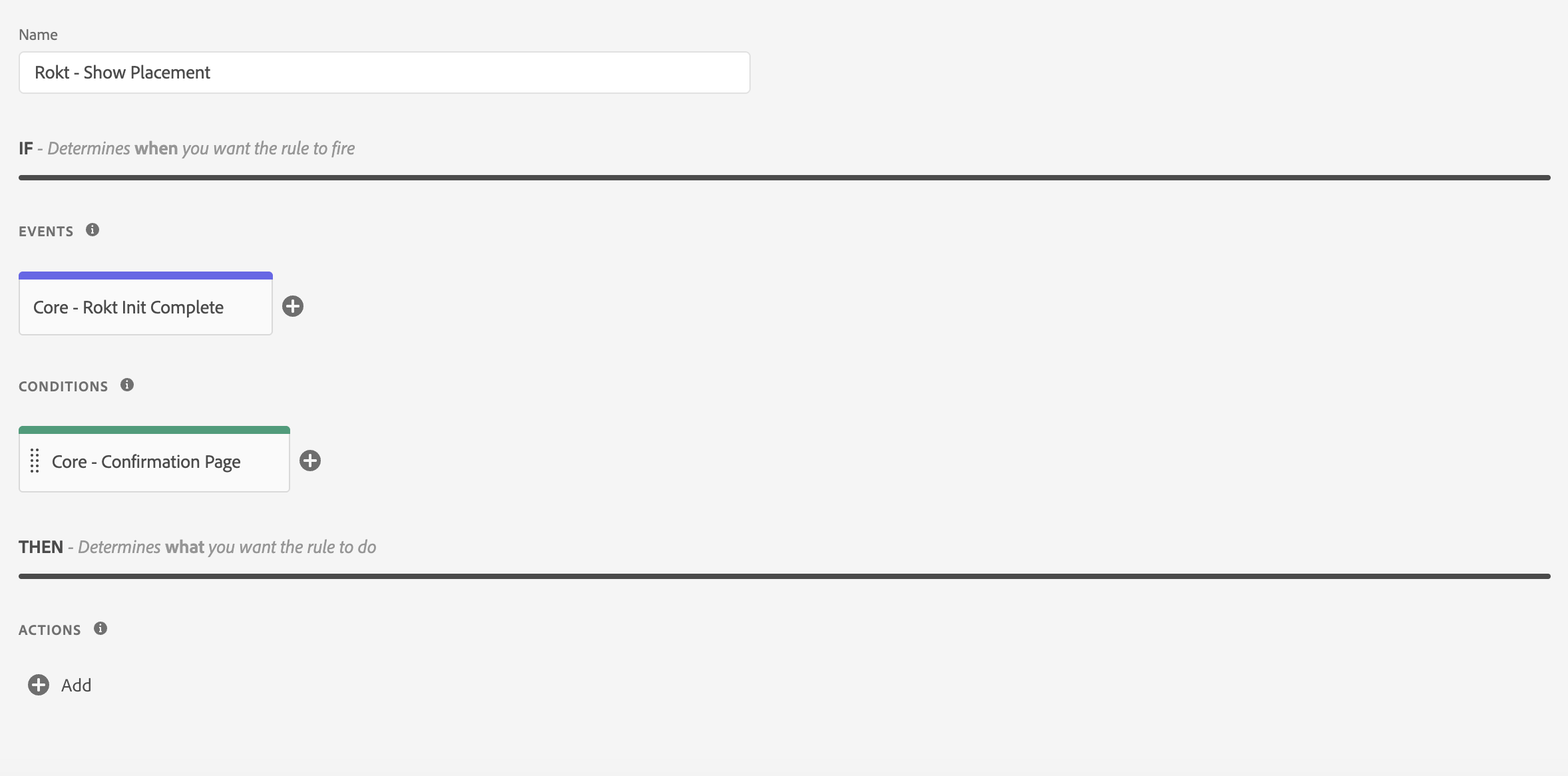

• Trigger configuration for multi-page applications

  1. Set the Event Type to Core → DOM Ready, Core → Page Bottom, or Core - Rokt Init Complete if you are using the roktInitComplete Custom Event.
  2. Under Conditions, add a Core → Path Without Query String condition.
  3. Enter a matching rule to identify the page where the tag should fire. For example, if your confirmation page is example.com/cart/payment/confirmation the identifying parameter can be any of /cart, /payment, or /confirmation.

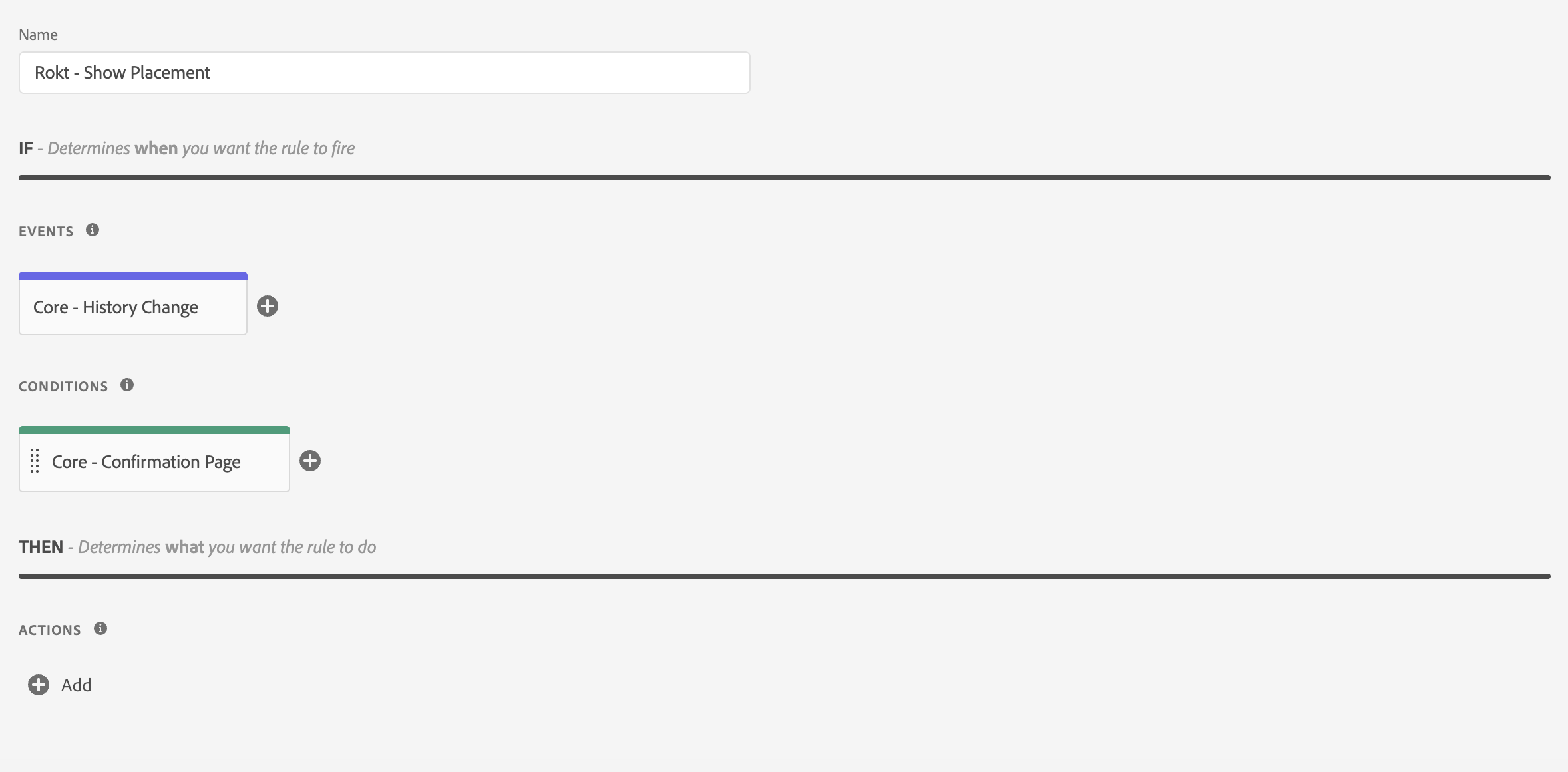

• Trigger configuration for single page applications

  1. Set the Event Type to Core → History Change.
  2. Under Conditions, add a Core → Path Without Query String condition.
  3. Enter a matching rule to identify the page where the tag should fire. For example, if your confirmation page is example.com/cart/payment/confirmation the identifying parameter can be any of /cart, /payment, or /confirmation.

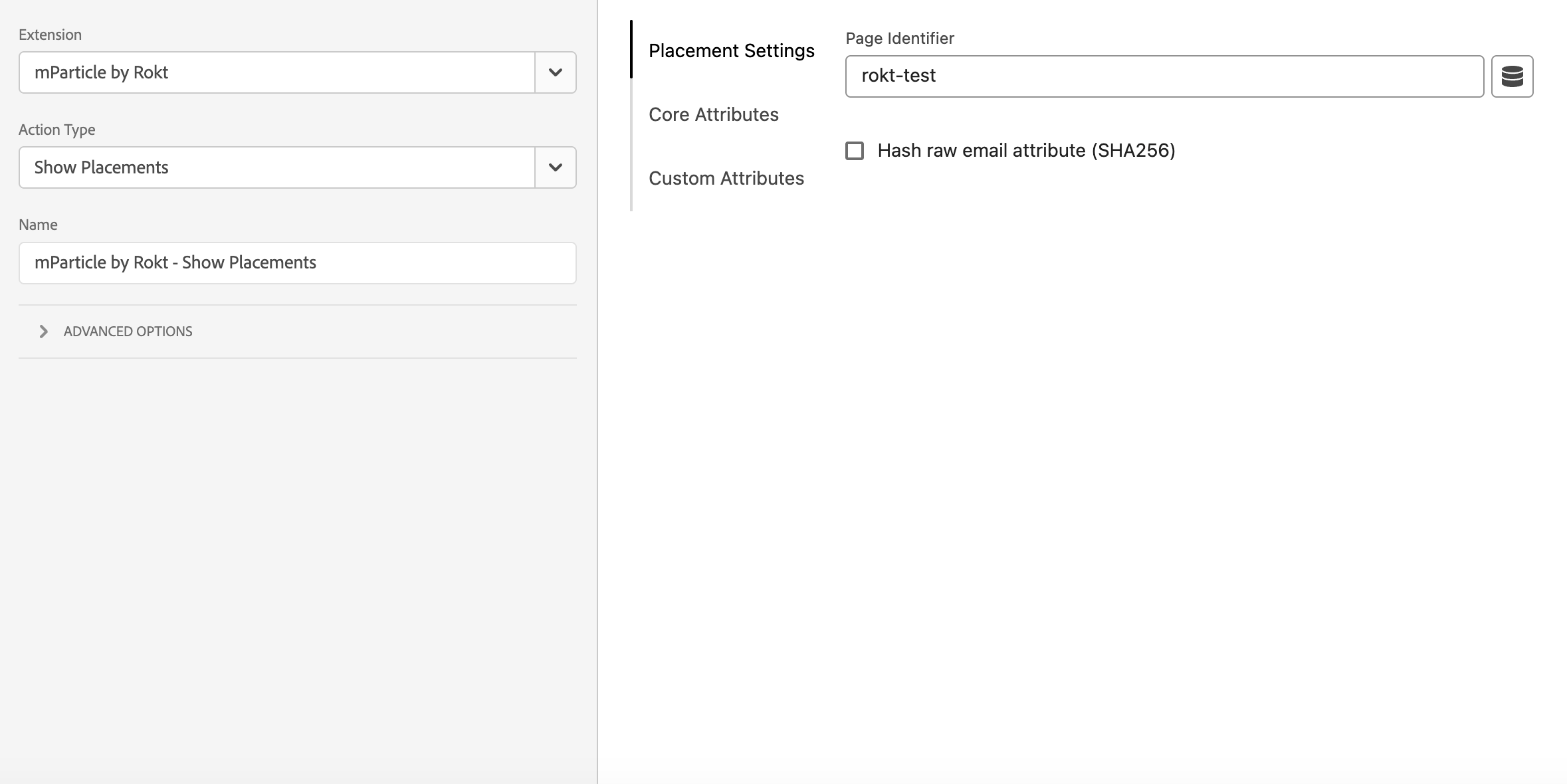

3. Create your Action and choose mParticle by Rokt as the Extension and Show Placements as the Action Type.

4. In the Placement Settings:

   • There is an option to set a Page Identifier. A page identifier uniquely identifies the page where the Rokt placement will be added, and is useful if you have a multi-step checkout flow that uses the same URL on multiple pages. You can use any value you want for your page identifier, but some examples include:
     • stg.rokt.conf - A confirmation page in a staging (or testing) environment.
     • prod.rokt.conf - A confirmation page in a production environment.
     • stg.rokt.payments - A payments page in a staging (or testing) environment.
     • prod.rokt.payments - A payments page in a production environment.
   • Enable Hash raw email attribute (SHA256) if you prefer to send Rokt the hashed version of the Email attribute.

5. In the Core Attributes tab, fill in all available attributes to send to Rokt. You should provide at least the email, firstname, lastname, billingzipcode and confirmationref attributes.

6. In the Custom Attributes tab, add any other attributes that are not predefined in the Core Attributes.

7. Click Keep Changes in the Action Configuration and Save.

Setup Recommendations

Rule Ordering

Adobe Experience Platform does not guarantee rule execution order across different rules, even if they share the same event. To ensure the subsequent events are fired correctly, you can indirectly control sequencing of these rules using a Shared Custom Event.

It is crucial that actions are firing in the expected order. For example:

• For Multi-Page Applications (MPAs), the Initialize Rokt action must be fired before any subsequent actions can be fired on any page loads.
• If you are identifying a user and showing a placement on the same page, the Identity Events action will be triggered automatically if you set the Email attribute in the Show Placements action.

To ensure your subsequent Actions will fire after the Initialize Rokt Action, you can add the following custom event so it fires after the action has fired on each page:

1. In your Initialize Rokt Action configuration, ensure you have Wait to run next action enabled in Advanced Options.
2. In your Initialize Rokt Rule configuration, add a new Action with Core as the Extension and Custom Code as the Action Type. Name this Action Core - Rokt Init Complete.
3. Select JavaScript as the Language and in the Editor, paste the following line:

window.dispatchEvent(new CustomEvent("roktInitComplete"));

4. In subsequent rule setups, such as Log Event or Log Page View, trigger your action from an Event with a Core Extension and Custom Event Event Type.
5. Set the Custom Event Type to roktInitComplete and select any element.
6. Click Keep Changes.
7. Add any other relevant Conditions to your Rule configuration to ensure it fires on the correct page(s).

This setup will ensure that you are firing the actions in the correct order on each page.

note

Repeat this same setup to enable a roktIdentityComplete custom event to ensure your Identity Action has fired before the Log Event Action.

Combining Rules

Rokt recommends combining multiple mParticle by Rokt Actions into one rule. One example is combining the Initialize Rokt & Log Page View actions as they are both loaded on all pages.

1. Repeat steps 1-3 from Rule Ordering.
2. Create a new Action and choose mParticle by Rokt as the Extension and Log Page View as the Action Type.

This will ensure that the Initialize Rokt and Log Page View actions are run in the same rule on every page.

Data Elements

Understanding the data layer

The data layer should have been implemented on your web page by your developers.

A data layer is an object that contains all of the information that you want to share with Adobe Experience Platform's Data Elements. Information such as events or variables can be shared to Adobe via the data layer, and triggers can be set up in Adobe Experience Platform's Data Elements based on the values of variables or based on the specific events.

Adobe recommends using the Adobe Client Data Layer for new or restructured implementations. You are free to use other data layer specifications. Aligning to a consistent data layer that meets your organization’s needs is the most important.

Refer to the Adobe Experience developer guide for comprehensive details on how the data layer works.

Example of a data layer

window.adobeDataLayer = window.adobeDataLayer || [];

window.adobeDataLayer.push({
  email: "jenny.smith@rokt.com",
  user: { firstname: "Jenny", lastname: "Smith" },
  ecommerce: { transaction: { amount: "12.36" } },
  event: "page loaded",
});

Identifying your data elements

Data elements are set up in your Adobe Experience Platform and are matched to the data layer. Refer to the Adobe Experience developer guide for more details about Data elements.

The structure of your data layer on your page affects the data element name in your Adobe Experience Platform. See the following examples. If you use a data collector object as part of your data layer, simply use dot notation in the path to reference the object and property you want to capture into the data element, like _myData.pageName, or adobeDataLayer.pageName, etc.

Example data layer script 1:

window.adobeDataLayer.push({
  email: "jenny.smith@rokt.com",
});

Data layer path name: adobeDataLayer.email

Example data layer script 2:

window.adobeDataLayer.push({
  user: {
    firstname: "Jenny",
  },
});

Data layer path name: adobeDataLayer.user.firstname

Example data layer script 3:

window.adobeDataLayer.push({
  ecommerce: {
    transaction: {
      amount: "12.36",
    },
  },
});

Data layer path name: adobeDataLayer.ecommerce.transaction.amount

note

The JavaScript variable data element type treats array references as dots instead of brackets, so referencing the firstname data element as adobeDataLayer.user[0].firstname will not work.

Adding data elements

1. Navigate to the Data Elements tab and choose Add Data Element.

2. Name your variable and choose Core as the extension.

   • Use however your developer stored your values for Data Element Type
   • Use JavaScript Variable for in-memory values (e.g., adobeDataLayer.email)
   • Use Local Storage only if the values are persisted in the browser’s localStorage

3. Enter the path name that matches the variable name in your data layer setup by your developer.

Recommended Screen View Event Attributes

An example of attributes Rokt recommends Partners to send are screen_name, url, and referring-page. To add these attributes as Data Elements:

1. Navigate to the Data Elements tab and choose Add Data Element.

2. Name your variable and choose Core as the extension.

   • For screen_name:
     • Set the Data Element Type as Custom Code
     • Click Open Editor and paste the following line:

     return location.pathname.split("/").filter(Boolean).pop() || "home";

   • For url:
     • Set the Data Element Type as Page Info
     • In the Attribute dropdown, select URL
   • For referring-page:
     • Set the Data Element Type as Page Info
     • In the Attribute dropdown, select Referrer

3. Click Save and Save to Library Now you can reference these Data Elements in your Log Page View Custom Attributes.
